iSMA Controlli products for the Greek Market. Contact : info@arktoscontrols.com
Composite polymer body FCU valves
0% lead, therefore fully compliant with ROHS and REACH;
• No rust
• High thermic insulation
• No condensation
• High resistance to dirty water
• Light weight.

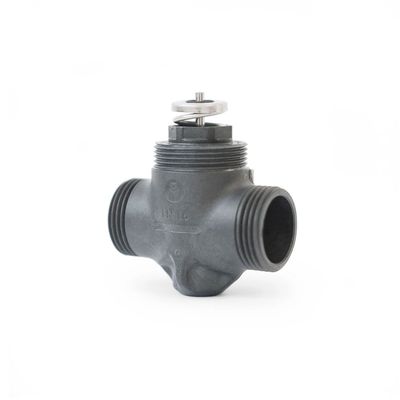

2way valve VPS16P DN15 Kvs=1,6
VPS16P 11,00 €
55183-11 1/2"F - 3/8"M (pack of 10 fittings and 10 gaskets) 26,40 €
Prices are subject to VAT 24%
The valves are equipped with a stainless steel spring that makes the valve Normally Open (NO) without actuator
Valve body Composite Polymer
Plug Composite Polymer
PN 16
T Fluid min 5°C
T Fluid max 95°C
Leakage 0%Kvs
Max close off 3.5 bar
Stroke 3,9mm
Valve type 2 way
DN [mm] 15
Kvs 1.60
Connection External threaded
Seal Flat
Fluid Water
Max Differential Press. [kPa] 350
Connection size 1/2" M (GAS UNI-ISO 228)
2way valve VPS25P DN20 Kvs=2,5
VPS25P 12,00 €
55183-12 3/4"F - 1/2"M (pack of 10 fittings and 10 gaskets) 27,60 €
Prices are subject to VAT 24%
The valves are equipped with a stainless steel spring that makes the valve Normally Open (NO) without actuator
Valve body Composite Polymer
Plug Composite Polymer
PN 16
T Fluid min 5°C
T Fluid max 95°C
Leakage 0%Kvs
Max close off 3.5 bar
Stroke 3,9mm
Valve type 2 way
DN [mm] 20
Kvs 2.50
Connection External threaded
Seal Flat
Fluid Water
Max Differential Press. [kPa] 350
Connection size 3/4" M (GAS UNI-ISO 228)

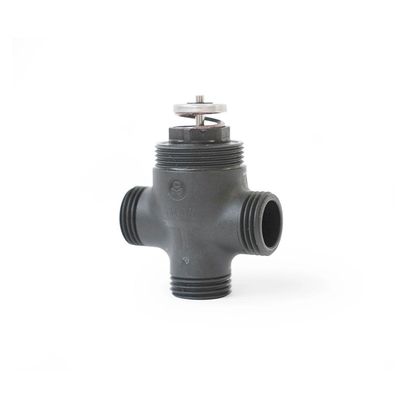

3way valve VPM16P DN15 Kvs=1,6
VPM16P 11,50 €
55183-11 1/2"F - 3/8"M (pack of 10 fittings and 10 gaskets) 26,40 €
Prices are subject to VAT 24%
The valves are equipped with a stainless steel spring that makes the valve Normally Open (NO) without actuator
Valve body Composite Polymer
Plug Composite Polymer
PN 16
T Fluid min 5°C
T Fluid max 95°C
Leakage 0%Kvs
Leakage by-pass 0%Kvs
Max close off 3.5bar (mixing)
Stroke 3,9mm
Valve type 3 way
DN [mm] 15
Kvs 1.60
Kvs by-pass 1.00
Connection External threaded
Seal Flat
Fluid Water
Max Differential Press. [kPa] 350
Connection size 1/2" M (GAS UNI-ISO 228)
3way valve VPM25P DN20 Kvs=2,5
VPM25P 12,60 €
55183-12 3/4"F - 1/2"M (pack of 10 fittings and 10 gaskets) 27,60 €
Prices are subject to VAT 24%
The valves are equipped with a stainless steel spring that makes the valve Normally Open (NO) without actuator
Valve body Composite Polymer
Plug Composite Polymer
PN 16
T Fluid min 5°C
T Fluid max 95°C
Leakage direct way 0%Kvs
Leakage by-pass 0%Kvs
Max close off 3.5bar (mixing)
Stroke 3,9mm
Valve type 3 way
DN [mm] 20
Kvs 2.50
Kvs by-pass 1.60
Connection External threaded
Seal Flat
Fluid Water
Max Differential Press. [kPa] 350
Connection size 3/4" M (GAS UNI-ISO 228)

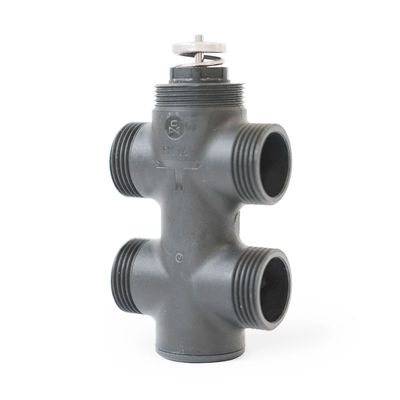

3way valve with built in by-pass VPT16P DN15 Kvs=1,6
VPT16P 12,70 €
55183-11 1/2"F - 3/8"M (pack of 10 fittings and 10 gaskets) 26,40 €
Prices are subject to VAT 24%
The valves are equipped with a stainless steel spring that makes the valve Normally Open (NO) without actuator
Valve body Composite Polymer
Plug Composite Polymer
PN 16
T Fluid min 5°C
T Fluid max 95°C
Leakage direct way 0%Kvs
Leakage by-pass 0%Kvs
Max close off 3.5bar (mixing)
Stroke 3,9mm
Valve type 3 way 4 port
DN [mm] 15
Kvs 1.60
Kvs by-pass 1.00
Connection External threaded
Seal Flat
Fluid Water
Max Differential Press. [kPa] 350
Connection size 1/2" M (GAS UNI-ISO 228)
3way valve with built in by-pass VPT25P DN20 Kvs=2,5
VPT25P 13,40 €
55183-12 3/4"F - 1/2"M (pack of 10 fittings and 10 gaskets) 27,60 €
Prices are subject to VAT 24%
The valves are equipped with a stainless steel spring that makes the valve Normally Open (NO) without actuator
Valve body Composite Polymer
Plug Composite Polymer
PN 16
T Fluid min 5°C
T Fluid max 95°C
Leakage 0%Kvs
Leakage by-pass 0%Kvs
Max close off 3.5bar (mixing)
Stroke 3,9mm
Valve type 3 way 4 port
DN [mm] 20
Kvs 2.50
Kvs by-pass 1.60
Connection External threaded
Seal Flat
Fluid Water
Max Differential Press. [kPa] 350
Connection size 3/4" M (GAS UNI-ISO 228)

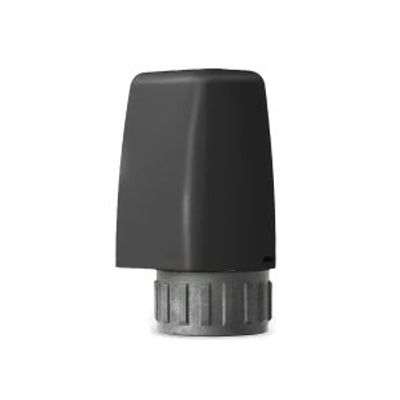

MVP230 Electrothermal Actuator 230Vac for VPS, VPM, VPT composite valves
MVP230 16,00 €
Prices are subject to VAT 24%
Electrothermal actuator for fancoil normally open valve series VPS, VPT and VPM
110 ÷ 230 Vac power supply, Force 170 N, control signal On/Off (only).
Power supply 110-230 V AC
Power consumption Max. [VA] 1.8VA (working) 50VA (starting 230Vac)
Force 170N
IP 44
Stroke 4mm
Control signal On/Off
Emergency Return No
Actuator type Electrothermal
T Fluid max 95 °C
MVP24 Electrothermal Actuator 24Vac/dc for VPS, VPM, VPT composite valves
MVP24 16,00 €
Prices are subject to VAT 24%
Electrothermal actuator for fancoil normally open valve series VPS, VPT and VPM
24 Vac/dc power supply, Force 170 N, control signal On/Off or pulse width modulation
Power supply 24 Vac/dc
Power consumption Max. [VA] 1.8VA (working) 4VA (starting 24Vac)
Force 170N
IP 44
Stroke 4mm
Control signal On/Off
Emergency Return No
Actuator type Electrothermal
T Fluid max 95 °C

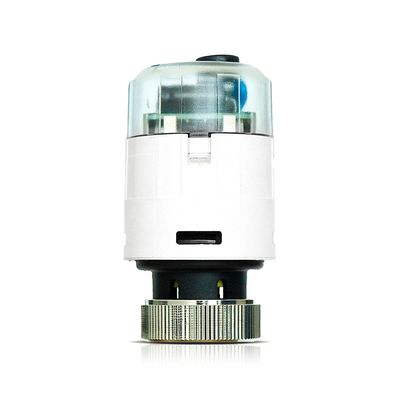

MVX52B Electrothermal Actuator 24Vac with porportional 0-10Vdc signal for VPS, VPM, VPT valves
MVX52B 53,00 €
Prices are subject to VAT 24%
Electrothermal actuator for Micra or composite valves type VPS, VPM. VPT
Force 140 N and proportional control signal 0-10 V dc (reverse action).
Power supply 24 Vac.
Equipped of 2 m three-pole cable (0.35 mmq) and M30x1.5 ring nut.
Power supply 24 Vac
Power consumption Max. [VA] 1.8VA (working) 5VA (starting 24Vac)
Force 140N
IP 44
Stroke 4mm
Control signal 0-10Vdc
Actuator type Electrothermal
T Fluid max 95 °C
