2FGB 2way valves with flanged connections

---

2-way globe valve, PN16,  flanged  connections,   cast iron body and brass plug. Fluid temperature  from -10°C  to 150 °C.  Leakage 0...0,03% kvs direct way,  stroke 25 mm,  equal-percentage characteristic

Max regulation differential pressure 200kPa

                                                                                      Valve Price                    Selected Actuator*          Actuator Price

2FGB40        DN40       kvs=25 m3/h            250,00 €                      MVE504    400N                     172,00 €

2FGB50        DN50       kvs=40 m3/h            260,00 €                      MVE506    600N                     186,00 €

2FGB65        DN65       kvs=63 m3/h            310,00 €                      MVE510 1000N                     202,00 €

2FGB80        DN80      kvs=100 m3/h          390,00 €                      MVE510 1000N                     202,00 €

2FGB100     DN100   kvs=130 m3/h          500,00 €                      MVE515 1500N                     247,00 €

2FGB125     DN125   kvs=200 m3/h          910,00 €                      MVE522 2200N                     310,00 €

2FGB150     DN150   kvs=300 m3/h       1090,00 €                      MVH3K  3000N                      640,00 €

The above prices are subject to VAT 24%

Available insulation shells  for each valve on request

We recomend to use the 2FGB valves with MVE or MVH actuators

* The selection is based on the max differential pressure for normal installations. You can choose another one based on your site requirements and the data sheet.

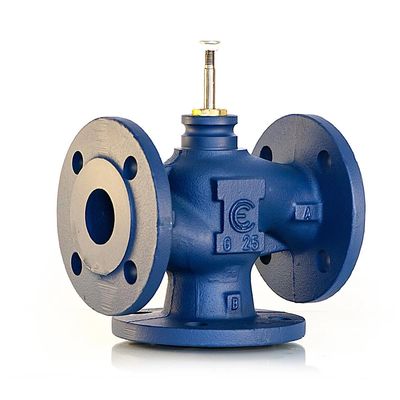

3-way globe valve, PN16,  flanged  connections,   cast iron body and brass plug. Fluid temperature  from -10°C  to 150 °C.  Leakage direct way 0...0,03% kvs, bypass way  0...2%, stroke 25 mm,  equal-percentage characteristic

Max regulation differential pressure 200kPa

                                                                                      Valve Price                    Selected Actuator*          Actuator Price

3FGB40        DN40       kvs=25 m3/h            220,00 €                      MVE504    400N                     170,00 €

3FGB50        DN50       kvs=40 m3/h            230,00 €                      MVE506    600N                     186,00 €

3FGB65        DN65       kvs=63 m3/h            250,00 €                      MVE510 1000N                     205,00 €

3FGB80        DN80      kvs=100 m3/h          315,00 €                      MVE510 1000N                     205,00 €

3FGB100     DN100   kvs=130 m3/h          410,00 €                      MVE515 1500N                     250,00 €

3FGB125     DN125   kvs=200 m3/h          810,00 €                      MVE522 2200N                     310,00 €

3FGB150     DN150   kvs=300 m3/h          960,00 €                      MVHE3K  3000N                   640,00 €

The above prices are subject to VAT 24%

Available insulation shells  for each valve on request

We recomend to use the 3FGB valves with MVE or MVH actuators

* The selection is based on the max differential pressure for normal installations. You can choose another one based on your site requirements and the data sheet.

MVE504         172,00 €

MVE504-65 with  IP65         202,00 €

MVE504R with electronic failsafe function         256,00 €

MVE504R-65 with IP65 and  electronic failsafe function         286,00 €

Prices are subject to VAT 24%

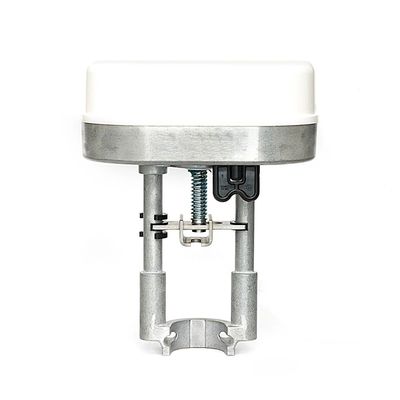

Actuator for globe valve, 400 N, 24 Vac / Vdc, IP54 or IP65 (-65 models).
U-bolt connection with long yoke.
Stroke from 5 to 60 mm.
Command : 3 point and 0..10 Vdc selectable.
Working fields 0 ÷ 10 Vdc, 2 ÷ 10 Vdc, 0 ÷ 5 Vdc, 5 ÷ 10 Vdc, 2 ÷ 6 Vdc, 6 ÷ 10 Vdc, 4 ÷ 20 mA.
Plug & Play and self-calibration in case of variations during operation.

MVE506         186,00 €

MVE506-65 with  IP65         216,00 €

MVE506R with electronic failsafe function         270,00 €

MVE506R-65 with IP65 and  electronic failsafe function         300,00 €

Prices are subject to VAT 24%

Actuator for globe valve, 600 N, 24 Vac / Vdc, IP54 or IP65 (-65 models).
U-bolt connection with long yoke.
Stroke from 5 to 60 mm.
Command : 3 point and 0..10 Vdc selectable.
Working fields 0 ÷ 10 Vdc, 2 ÷ 10 Vdc, 0 ÷ 5 Vdc, 5 ÷ 10 Vdc, 2 ÷ 6 Vdc, 6 ÷ 10 Vdc, 4 ÷ 20 mA.
Plug & Play and self-calibration in case of variations during operation.

MVE510      202,00 €

MVE510-65 with  IP65         232,00 €

MVE510R with electronic failsafe function         286,00 €

MVE510R-65 with IP65 and  electronic failsafe function         316,00 €

Prices are subject to VAT 24%

Actuator for globe valve, 1000 N, 24 Vac / Vdc, IP54 or IP65 (-65 models).
U-bolt connection with long yoke.
Stroke from 5 to 60 mm.
Command : 3 point and 0..10 Vdc selectable.
Working fields 0 ÷ 10 Vdc, 2 ÷ 10 Vdc, 0 ÷ 5 Vdc, 5 ÷ 10 Vdc, 2 ÷ 6 Vdc, 6 ÷ 10 Vdc, 4 ÷ 20 mA.
Plug & Play and self-calibration in case of variations during operation.

MVE515     247,00 €

MVE515-65 with IP65        277,00 €

MVE515R with electronic failsafe function         330,00 €

MVE515R-65 with IP65 and  electronic failsafe function         360,00 €

Prices are subject to VAT 24%

Actuator for globe valve, 1500 N, 24 Vac / Vdc, IP54 or IP65 (-65 models).
U-bolt connection with long yoke.
Stroke from 5 to 60 mm.
Command : 3 point and 0..10 Vdc selectable.
Working fields 0 ÷ 10 Vdc, 2 ÷ 10 Vdc, 0 ÷ 5 Vdc, 5 ÷ 10 Vdc, 2 ÷ 6 Vdc, 6 ÷ 10 Vdc, 4 ÷ 20 mA.
Plug & Play and self-calibration in case of variations during operation.

MVE522     310,00 €

MVE522-65 with IP65         340,00 €

Prices are subject to VAT 24%

Actuator for globe valve, 2200 N, 24 Vac / Vdc, IP54 or IP65 (-65 models).
U-bolt connection with long yoke.
Stroke from 5 to 60 mm.
Command : 3 point and 0..10 Vdc selectable.
Working fields 0 ÷ 10 Vdc, 2 ÷ 10 Vdc, 0 ÷ 5 Vdc, 5 ÷ 10 Vdc, 2 ÷ 6 Vdc, 6 ÷ 10 Vdc, 4 ÷ 20 mA.
Plug & Play and self-calibration in case of variations during operation.

MVE504-2-RS     400N     345,00 €

MVE504R-2-RS  400N with electronic failsafe function         429,00 €

MVE506-2-RS     600N    350,00 €

MVE506R-2-RS  600N with electronic failsafe function         429,00 €

MVE510-2-RS     1000N    370,00 €

MVE510R-2-RS  1000N with electronic failsafe function         434,00 €

MVE515-2-RS     1500N    444,00 €

MVE515R-2-RS  1500N with electronic failsafe function         453,00 €

MVE522-2-RS      2200N    558,00 €

Prices are subject to VAT 24%

Multiprotocol Network actuator for PICV and Globe Valves with energy and temperature control functions, BACnet and Modbus protocols.

Force – 400 N, 600N, 1000N, 1500N, 2200N
Control signal – Modbus, BACnet or proportional
Power supply – 24 V AC/DC
Connection type - U-bolt
Stroke – 5-60 mm

Emergency Return – electronic fail-safe function (MVE50xR-2-RS)

MVE5xxx-2-RS is equipped with two temperature inputs for direct connection of NTC 10K temperature sensor to allow:

• Temperature monitoring

• DeltaT and Temperature – control and limit

• Energy Calculation with Libra PICV (VLX6P or VLX8P)

Position Control

The actuator receive modulating signal coming from a control loop implemented by BMS and the valve is positioned from 0% to 100% accordingly to the voltage (0...10 V DC) or the current (4...20 mA) or RS485 (Modbus RTU or BACnet MS/TP) Command. When it is installed with PICV (iC PICV or custom) the control signal represents the desired flow rate that is a % from 0% to 100% of the maximum flow rate. Actuator position characteristic (in PICVs) is normally linear, but MVE5xxx-2-RS allow to set an equal percentage behaviour allowing to make a linear valve working like an equal percentage valve.

Diagnostics

The actuator is equipped with a self-diagnostic algorithm able to detect the following conditions\anomalies:

• Actuator status (Normal Operation, Calibration, Initialization, Fault, Manual).

• Calibration on a stroke out of range 5-60 mm.

• Unexpected stall (e.g. valve blocked or extra stroke due to actuator not correctly coupled); the number of detected events is stored permanently.

• Supply voltage outside the allowed range; the number of detected events is stored permanently.

• Total number of opening and closing cycles.

• Temperature sensors outside the allowed temperature range (if any).

Temperature control loop

MVE5xxx-2-RS can be connected to 2 sensors for measuring the supply and return temperature of a hydraulic circuit for monitoring purposes or for control purposes. The actuator can implement a temperature control loop (PID): the actuator independently controls the supply or the return temperature or the ∆T according to a set-point provided by the BMS -  the BMS only sets the temperature\ΔT setpoint and the actuator works independently even in the absence of the RS485 connection. If only temperatures monitoring is required, the measured values are made available to the BMS through dedicated Modbus RTU or BACnet MS/TP registers. Temperature setpoints, PID control parameters, Heating/Cooling mode can set via Modbus RTU or BACnet MS/TP or via USB by the MVE-2-RS Configurator.

ΔT limit function

If a heating or cooling system works with a differential temperature between the supply and return too low, it means that there is no heat exchange between the fluid and the air flow and therefore it is more efficient to reduce the fluid flow as this does not generate any heating or cooling effect. This means that the pumps circulate too much water with unnecessary increase of energy consumption. The ΔT limit function automatically limits the flow rate to prevent the ΔT level from falling below the desired differential temperature.

This function overrides the control signal from the BMS when the ΔT is lower than the setpoint; BMS will be again in charge of the valve positioning when the ΔT is higher than the setpoint. The minimum value of ΔT and the other parameters of the control loop (PID) can set via Modbus RTU or BACnet MS/TP or via USB.

Supply/Return temperature limit function

MVE5xxx-2-RS can implement a limit control loop on the return or on the supply temperarature in order to override the BMS control when energy efficiency conditions are not respected (e.g. in cooling mode return temperature higher than a setpoint value). The following limiting functions can be implemented:

• Maximum temperature limit control loop: the actuator will override the BMS control signal when the supply \return temperature is higher than the setpoint; the user can select if the loop has to be implemented on the supply or return temperature sensor. For example in a domestic hot water application the actuator can override the bms control signal if the supply temperature exceeded a setpoint value that could be dangerous for the user.

• Minimum temperature limit control loop: the actuator will override the BMS control signal when the supply - return temperature is lower than the setpoint; the user can select if the loop has to be implemented on the supply or return temperature sensor. For example in a cooling application the actuator can override the BMS control signal if the return temperature is lower than a setpoint value in order not to affect the chiller efficiency.

Power Control Function

When the actuator is installed with PICV valves (iC or custom) and both temperature sensors are installed, the Power Control function can be enabled and the MVE-2-RS calculates the thermal power transferred from the coil and to control it independently of pressure fluctuations in the systems and other external conditions that could affect the heat transfer process, lowering the overall efficiency. It is possible to set the maximum desired power (Design power Pmax) whose value is between zero and the nominal power values (Pnom) defined for the valve at the various ΔT

Power limit function

 When the actuator is installed on PICV valves (iC or custom) and both temperature sensors are installed, the Power Limit function can be enabled and the MVE-2-RS limits the actuator position when the BMS command is greather than of Set Max Power Limit value (Set Power Limit Set point).

Calibration function

MVE5xxx-2-RS is equipped with an automatic calibration function. The plug & play function enables the calibration at the first start-up of the actuator and therefore no further calibration operations are required unless maintenance is required on the valve or particular alarm conditions occur. If it is necessary to repeat the calibration, it can be activated by pushing the S2 button on the electronic board or remotely via Modbus RTU or BACnet MS/TP.
