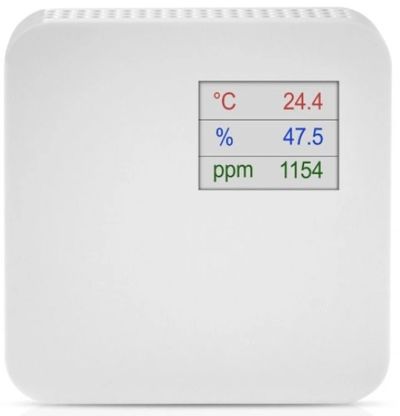

RCD 010 THD Carbon Dioxide (CO2) + Humidity (rH) + Tem

---

RCD 010 THD    160,00 €

Prices are subject to VAT 24%

  Features

• Carbon Dioxide (CO2) output 0-10 Vdc

• Humidity (rH) output 0-10 Vdc

• Temperature (T) output 0-10 Vdc

• LCD display (colored)

• Carbon Dioxide (CO2) sensor  Photoacoustic NDIR sensor with auto calibration

• Temperature (T) and Humidity (rH) sensor  Digital type SHT40

• Carbon Dioxide (CO2) selectable ranges  with DIP switches  0-2000 ppm or 0-5000 ppm

• Carbon Dioxide (CO2) accuracy  ±60 ppm for range 0-2000 ppm ± 2% f.s ±150 ppm for range 0-5000 ppm ± 2% f.s

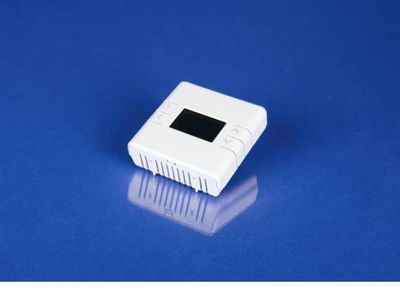

CO2R 51 MDR2B     155,00 €

Prices are subject to VAT 24%

  • Maintenance free NDIR sensor

 • Measuring ranges 400-2.000 ppm 0-2.000 ppm 0-5.000 ppm 0-10.000 ppm selectable ranges with DIP switch On request0-1.000 ppm

 • Output(s) 0-10 Vdc, 2-10 Vdc, 4-20 ma, 0-5 Vdcor 1-5 Vdc ( One output and Two CO2 outputs available)

 • Estimated operating life 15 years

 • ABC –Automatic Baseline Calculation

 • Accuracy 70 ppm  +3 % reading

 • Power supply 24 Vac/dc

• Modbus RS485 communication

 • LCD Display

 •  1 x relay output , can be set individually

 •  2 x relay outputs, can be set individually

 •  Buzzer
